DIPROVEL project “Technological demonstrator of an aeronautical hybrid propulsion system for applications on light aircraft”

Partner: CMD, CIRA, UMBRA CUSCINETTI, VGA.

GearUp s.r.l. technical collaboration activities

GearUp s.r.l. provided technical consultancy within the PON – DIPROVEL project “Technological demonstrator of an aeronautical hybrid propulsion system for applications on light aircraft” for the design of the parallel hybrid system with a maximum power of 135 kW, composed of a PMSM EMRAX 268 electric motor LV and a CMD 22 spark ignition heat engine for aeronautical application on a Cessna 337 aircraft. As part of this project GearUp s.r.l. carried out design and mechanical coupling activities of the hybrid propulsion system through a unidirectional bearing placed between the thermal and electric motor Figure 1.

Figure 1. CMD 22 and EMRAX 268 LV aeronautical hybrid engine.

GearUp s.r.l. developed a mathematical model of the propulsion system in Matlab/Simulink (Figure 2) and subsequently validated through experimentally obtained data.

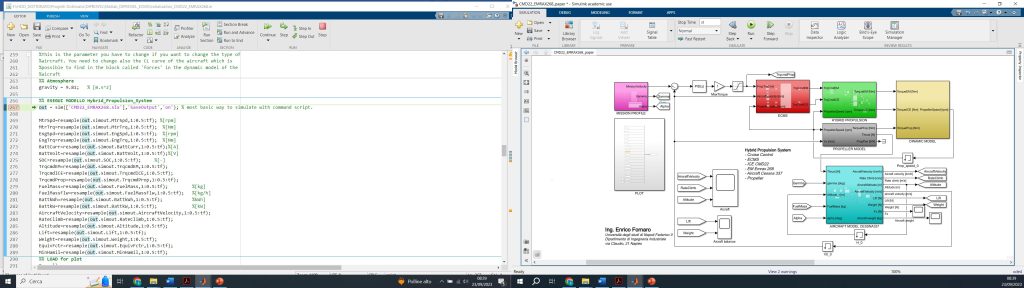

Figure 2. Mathematical model of the Aeronautical hybrid engine created in Matlab/Simulink.

Furthermore, a consumption control and minimization strategy based on the Equivalent Consumption Minization Strategy (ECMS) algorithm was developed.

The strategy is capable of autonomously controlling two engines, the electric one and the thermal one, minimizing fuel consumption and respecting the desired mission requirement. The algorithm was written in Matlab/Simulink and was tested in real-time on the real physical system in the engine test room.

Publications

  • Fornaro, E., Cardone, M., & Dannier, A. (2022). A Comparative Assessment of Hybrid Parallel, Series, and Full-Electric Propulsion Systems for Aircraft Application. IEEE Access, 10, 28808-28820.
  • Fornaro, E., Cardone, M., & Dannier, A. (2022, June). Hybrid Electric Aircraft Model Based on ECMS Control. In 2022 International Symposium on Power Electronics, Electrical Drives, Automation and Motion (SPEEDAM)(pp. 865-870).
  • Fornaro, E., & Tordela, C. (2023). An Energy Management Strategy for Aeronautical Hybrid Propulsion Systems Based on an MPC Supervisor(No. 2023-24-0026). SAE Technical Paper.
